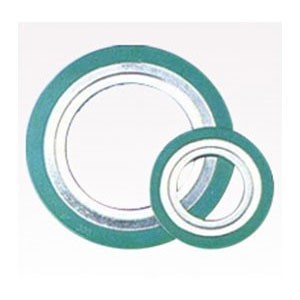

Spiral Wound Metallic Gaskets

Our Spiral Wound Metallic Gaskets are skillfully manufactured by spirally winding a preformed metal strip and filler on the outer periphery of metal winding mandrels. Its winding mandrel outside diameter forms the inner diameter of the gasket and the hoop strip continually wounds until the required outer diameter is attained.

We offer Spiral Wound Metallic Gaskets in standards as per ASME B 16.20 suitable for flanges of ANSI B 16.5 , MSSP 44 flanges for SORF , Tongue and Groove .

We manufacture gaskets with Inner and Outer Ring with Partition Ribs for tube vessels, heat exchangers. These can be customized with standard and non-standard thickness and sizes upto 2000 mm Outer Diameter as per the client's requirements.


Why Our Spiral Wound Metallic Gaskets?

· Adequate flexibility · Can withstand high pressure · Longer working life · Maintains a seal under variable and uneven loading

Winding Material (Hoop) Available In

Stainless Steel AISI 304 / 316 / 321 · Monel · Titanium · Duplex · Inconel · Hastelloy

Filler Material Available In

CAF · Non Asbestos jointing · PTFE · Flexible Graphite · Ceramic
