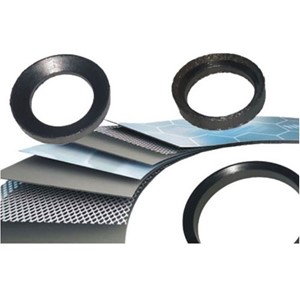

Flexible Graphite Gaskets
Graphite (Graphoil®) moulded Rings are made from pure
graphite containing no binder or fillers. Graphite Gaskets
can be made to any size, shape, profile as per Drawing from
Sheets. These may be from
-
Plain Flexible Graphite
-
Sheet / Foil insert
-
Tanged Sheet insert
-
Sheet / Foil insert
-
Tanged Sheet insert
-
Sheets / Gaskets with Metal insertion of SS 304 / SS 316
/ GI
-
Wire Mesh in Stainless Steel / Carbon steel.
The Graphite Gaskets are specially designed to provide the
desired compression with high percentage recovery and low
creep relaxation. Seals the minutest imperfections –
Effective and excellent Sealing.
-
High Temperature Resistance : -200 deg C to 600 deg C
(+3000C in non-oxidizing areas)
-
High Chemical Resistance : PH 0-14 · High
Pressure Resistance : Upto 1000 PSI
-
High Cross Section Density : 1.6 gm/mm (For Moulded
Rings) depending on design Upto 12000PSI for metallic
Gaskets
|
